Advanced Baby Training Panties Making Machine Full Servo Control with CE

Наименование марки:	Womeng
Номер модели:	WM-STP01
МОК:	1
цена:	$500,000.00-$800,000.00
Подробная информация об упаковке:	Мореховая деревянная коробка
Условия оплаты:	L/C, D/A, D/P, T/T, Western Union, Moneygram

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Фуцзян, Китай

Сертификация:

Автоматизация:

Полный автомат

Тип продукта:

Машина для изготовления детских тренировочных брюк

Размер диапазона:

S, M, L, XL (по индивидуальному заказу)

Гарантия:

1 год

Операционная система:

Сенсорный экран

Состояние:

Новый

Функция:

Автоматическая резка, складывание и уплотнение

Материал:

Нетканая ткань

Система управления:

Производственные мощности:

500-700 штук в минуту

Поставка способности:

12 комплектов/год

Выделить:

baby training panties making machine

servo control baby pants machine

CE certified baby pants machine

Описание продукта

Product Info

Product size	35m6m3m(for reference only)
Product structure	Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system	PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system	Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system	Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system	according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system	Materials corrective system: Adopt international famous brand deviation correction system
Power	380V, 50HZ three phase five wire
Machine Capacity	230KW (Excluding glue machine and air compressor)
Bleed pressure	0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight	100 Tons approximately

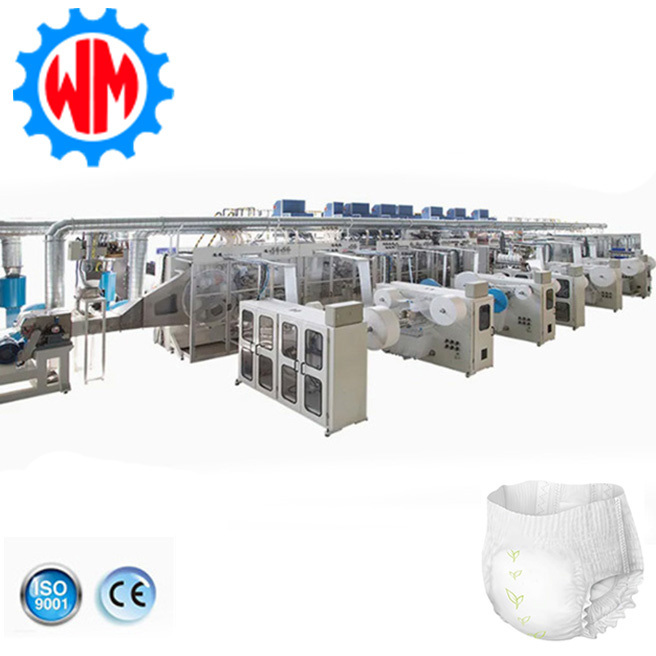

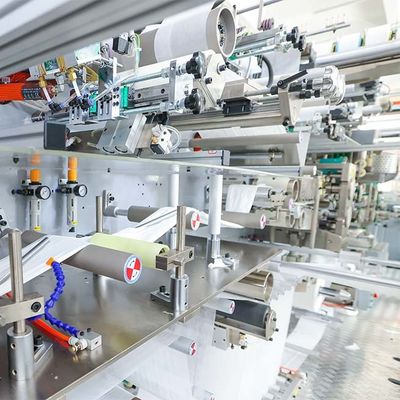

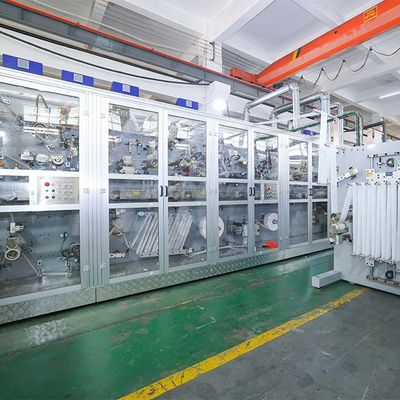

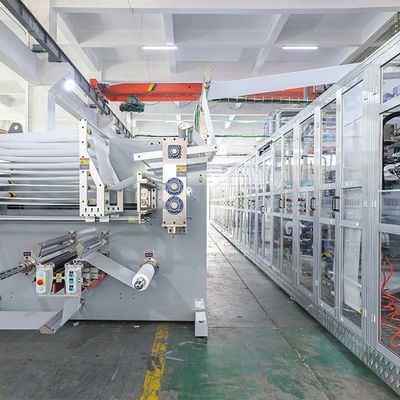

Advanced Baby Training Panties Making Machine Full Servo Control with CE 0

Advanced Baby Training Panties Making Machine Full Servo Control with CE 1

Advanced Baby Training Panties Making Machine Full Servo Control with CE 2

Advanced Baby Training Panties Making Machine Full Servo Control with CE 3

Advanced Baby Training Panties Making Machine Full Servo Control with CE 4

Advanced Baby Training Panties Making Machine Full Servo Control with CE 5

Advanced Baby Training Panties Making Machine Full Servo Control with CE 6

Advanced Baby Training Panties Making Machine Full Servo Control with CE 7

Advanced Baby Training Panties Making Machine Full Servo Control with CE 8

Advanced Baby Training Panties Making Machine Full Servo Control with CE 9

Advanced Baby Training Panties Making Machine Full Servo Control with CE 10

Advanced Baby Training Panties Making Machine Full Servo Control with CE 11

Advanced Baby Training Panties Making Machine Full Servo Control with CE 12

Advanced Baby Training Panties Making Machine Full Servo Control with CE 13

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Focus on the core experience of the product and meet the usage needs of infants

Precise guarantee of fit and leak-proof performance:

Relying on the stable drive of the full servo system, the stretching tension of the elastic waistband (error ±0.5N) and the distance between the leg elastic bands can be precisely controlled to ensure that the pull-up pants fit the waist-hip curves of infants of different weights, neither squeezing the skin nor shifting due to loosening. Meanwhile, by precisely adjusting the thermal pressure parameters of the three-dimensional leak-proof enclosure, the elasticity of the enclosure is maintained for a long time, effectively preventing side leakage of urine. The leak-proof rate of the finished product remains stable at over 98%, meeting parents' core expectation of "no leakage during activities".

Adapt to skin-friendly and comfortable requirements:

Compatible with various skin-friendly surface materials, with the precise control of the conveying speed and bonding pressure by the full servo system, it avoids fiber damage during production and ensures the soft touch of the pull pants. In response to the activity characteristics of toddlers, the crotch cutting parameters can be optimized to create a "narrow crotch design" that better fits leg movements, reducing friction and discomfort during walking. This design can meet the needs of infants at different growth stages without the need to replace core equipment.
